DRILL RIG

ADAP, HYD TEE 8 JIC 10 ORB

ADAP, HYD 90 8 JIC x 10 ORB

CYLINDER, HYD (1-3/8: ROD ORB VERSION)

CYLINDER, HYDRAULIC (1" ROD NPT VERSION)

FOOT CLAMP ADAPTER

GUIDE WELD'T, FOOTCLAMP

BOWL, ROD CLAMP

CONE-BEARING, I.D. 3.625"

CUP-BEARING, O.D. 5.75

CUP-BEARING, O.D. 8.875"

CONE-BEARING, I.D. 6.25"

BUSHING, FEED CYL SUPPORT

GUIDE, SLIDING ROD

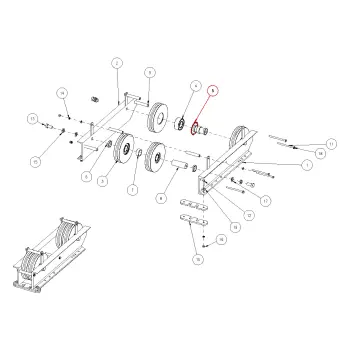

SNAP-RING

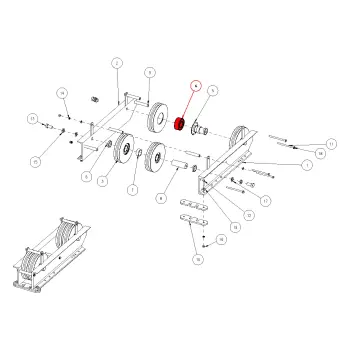

BEARING

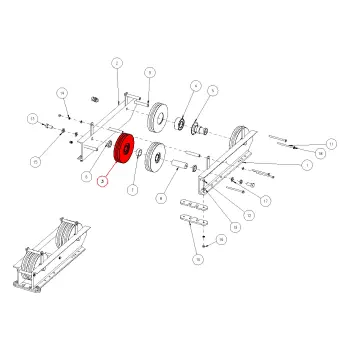

WHEEL, SHEAVE

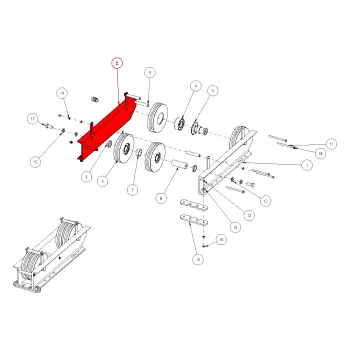

WELDMENT, SIDE RH

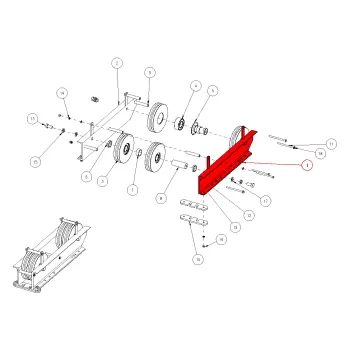

WELDMENT, SIDE LH

BULKHEAD ASM, LF90D UPPER MAST

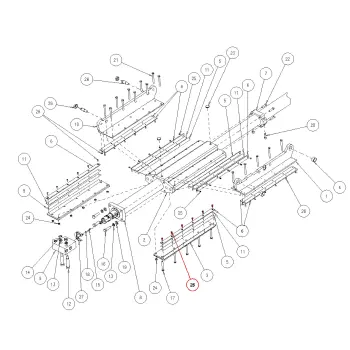

M/SCR, FL HD 1/4 UNC X 3/4 G8

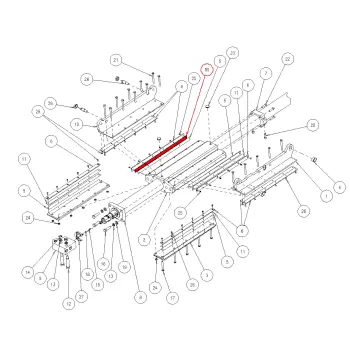

SHIM, 30 Ga. (.015")

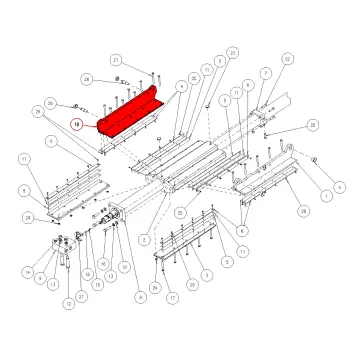

MOUNT, LEFT HAND

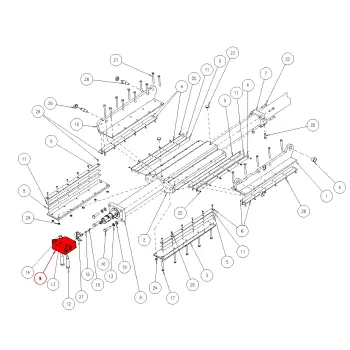

MANIFOLD ASM, FEED CYLINDER

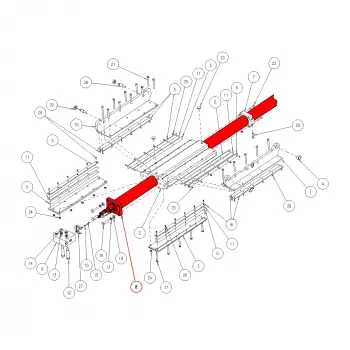

CYLINDER, FEED 132" STROKE [4" Bore, 2 3/4" Rod]
